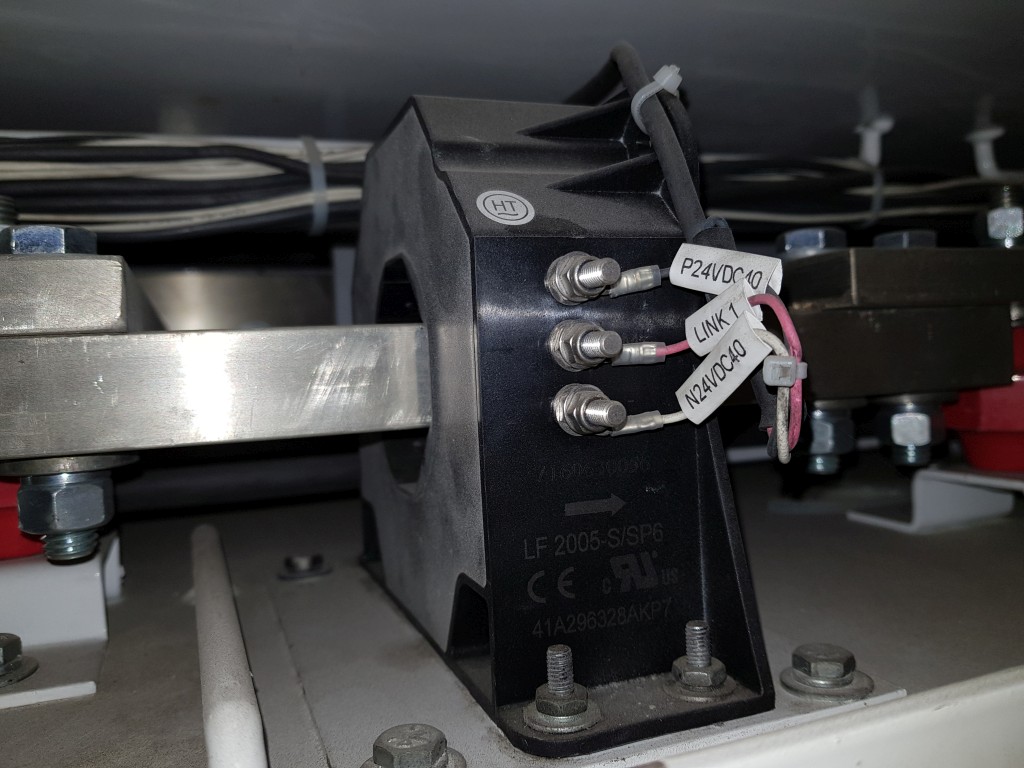

2000A LEM

2000A LEM

ACS part number G13318
Description Current Tranducer used in the AC Drive system
Other part numbers GE0756, 41A296328AKP7
Repairable item No
Service exchange No
Item availability
NSW
In Stock
QLD
In Stock
WA
Nil Stock
Downloads None
Contact Our Team

2 Related Parts:

FH41 Power Supply
Repairable Item Service Exchange Item Availability Downloads

FH41 Power Supply

G13207R

The FH41 power supply produces various voltages for the control system. Supplied by BP24V03 which is a 24V switched supply from CPR supplied via Blocking Diode One (BD1).24V supply is held stable via the Battery Filter Capacitor, which is located directly to the left of the power supply. Supplied via truck 24V circuit this power supply produces the following:+5v    ±15V    ±24VGreen LED’s on the outside provide visual indication of the status of each output voltage.

FH41, GE0755, 2003456, 1454424, 58E-00-01152

View Part
1000A LEM
Repairable Item Service Exchange Item Availability Downloads

1000A LEM

G13317

The Current Transducers used in the AC Drive system measure AC or DC Current. There are 2 sizes within the control system, a 1000A and a 2000A version. There are also a couple of different hardware versions, feel free to contact the team at Austindo for further information.

GE0170, 41A296328AKP2

View Part
