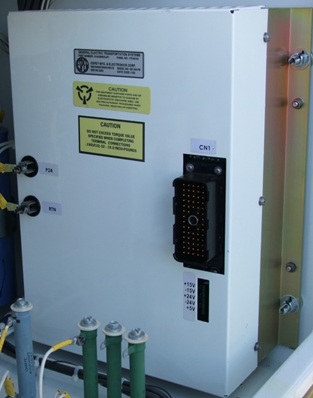

FH41 Power Supply

FH41 Power Supply

ACS part number G13207R
Description The FH41 power supply produces various voltages for the control system. Supplied by BP24V03 which is a 24V switched supply from CPR supplied via Blocking Diode One (BD1).24V supply is held stable via the Battery Filter Capacitor, which is located directly to the left of the power supply. Supplied via truck 24V circuit this power supply produces the following:+5v    ±15V    ±24VGreen LED’s on the outside provide visual indication of the status of each output voltage.
Other part numbers FH41, GE0755, 2003456, 1454424, 58E‑00‑01152
Repairable item Yes
Service exchange No
Item availability
NSW
In Stock
QLD
In Stock
WA
Nil Stock
Downloads None
