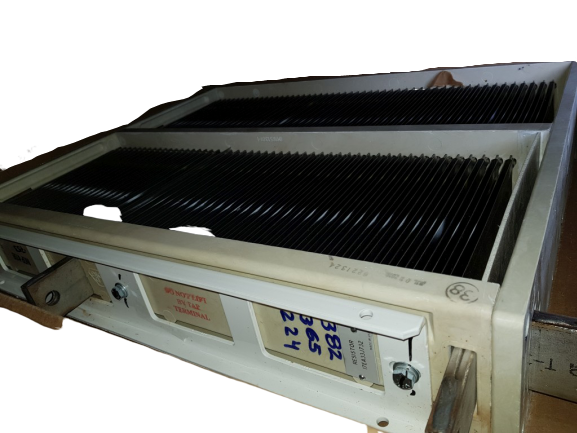

17EA33J732 Resistor Grid
| ACS part number | C13342 | ||||||
| Description | Grid box dynamic braking resistor grid for GE drive system. Note these are the genuine GE versions. | ||||||
| Other part numbers | XA3146, 58E‑06‑00860, XA6049, 58E‑06‑00951, 17EA33D732, 1454381, 2004492 | ||||||
| Repairable item | No | ||||||
| Service exchange | No | ||||||
| Item availability |
|
||||||
| Downloads |
6 Related Parts:
Single Fan Grid Blower Motor
G13584
ACS can also supply grids if required.
5GY19U1, XA4558
View Part
Grid Blower Motor
G14297
ACS also carry in stock the single ended fan alternative
GE0017, 2003450, XA4146, pb9278, PB6662, 2003450
View Part
Grid insulation end pieces
M14804
Resistor Grid Insulator End pieces (2x sides, 1x top) This is an ACS aftermarket option that helps address two alignment issue often present in these grid box assemblies.
View Part
Upgraded exhaust frame assembly
G14822
This version helps grid alignment
84D736996G1
View Part
Diffuser
G13770
Complete Diffuser Assembly (GE1815/GE0018) Non Comm End
GE0018, GE1815, 84D710746G4
View Part
Collar
G14763
Collar assembly, part of gridbox
GE0021
View Part
